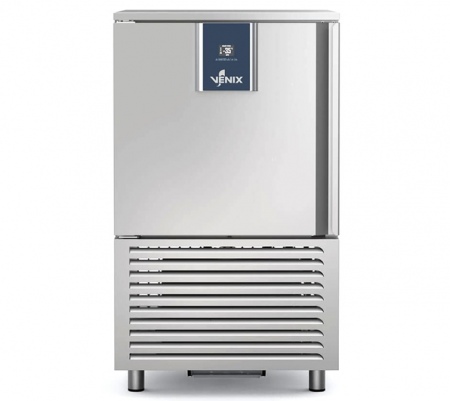

Venix ASP10 Blast Chiller & Shock Freezer, 10GN

Capacity per cycle:
Chill > 40kg +90o ~ +3oC
Freeze > 25kg +90o ~ -18oC
Adjustable Multi Rack tray holder > 5 GN 1/1 or 5 600x400 or 5 660x 460 or up to 4 ice cream trays of size 360x165x120 per level
Removable tray holders
Cooling capacity: 4590 W
Ambient operating temperature: 43oC
Touch control on top of the unit with user-friendly graphic display
Cycle controlled by core probe or timer
Pre-set recipes
Equipped with HACCP function
Fish sanitation cycle
Larger evaporator fan improves airflow and heat extraction
Reversible door
Top of the market cooling and energy saving performance
Anti-condensation door frame
Hot gas defrost system
Self-closing door
Easy to clean magnetic sealing gasket, replaceable without tools
Insulation with high density HDPI polyurethane 70mm thickness
Composite fan blade with low temperature bearing
Condenser protection easily removable for cleaning with any tools
Load Capacity: 10 trays GN 1/1, 600x400, 660x460
Space between Trays: 74mm
Power: 400 volt 3Phase,3.5kw
Dimensions: 870w x 870d x 1560mm h
Weight: 190kg
