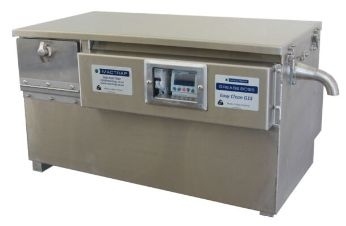

Mactrap Grease Boss Easy Clean G15, Self Cleaning Grease Removal Unit

A front-loading filter basket of 2mm gauge is located above water level to capture substantial solids and stop them flowing into and blocking the tank.
The basket can be easily removed for regular checking and emptying if excess solids are not caught by a sink filter.*
Sealed to mitigate odour escaping
PLC controlled with visual screen explaining any operating issues
Accessible control buttons for service check and reset
Magnetic switch-off when lid opened
No heating element- instead it uses the hot water available in your own operation
Raw water supply should be at least 45C - most animal fats are viscous at 40C
Pump out option is controlled by PLC to occur only after FOG extraction cycle is complete
Can take dishwashers inflow**
Combi-oven options available
* All sinks or sources of FOG should have a permanent filter as well.
** Combined dish washer and sink inflow should not exceed specified inflow rate
Dimensions: 750L x 500W x 371mm h
Inflow rate: 1.6l/Sec
Treatment Capacity: 390 Litre
* When all operating aspects comply with operational manual
** When FOG components are at operating recovery temperatures and wiper is clean
